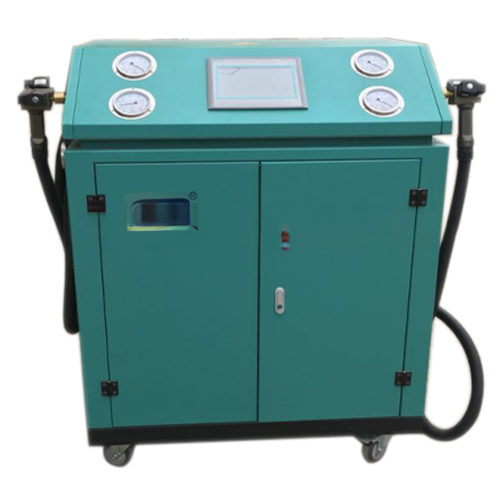

CM86 refrigerant charging filling machine series is specially designed for the fast speed refrigerant charging at production line.
It features for its high speed of charging, high accuracy. multiple function etc. The machines are compatible with refrigerants of CFC,HFC,HC,etc. The machine can also be customized according to your special requirements.
Features
1. Adpot CNC technology allow the data processing capability with accurate and easy operation.
2.Charing/filling liquid gas r134a, r22, r407c, r410a etc.(for r600a, r290,r32 can custom) .
3.Siemens PLC and colorful touch sreen control system.
4.Adopt high accuracy flow sensors make this machine can get accurate data, and the resolution has reached to 1~0.1g.
5.The Wonfulay(our own brand) Pneumatic booster to ensure stable pressure and the supply of large charging quantity.
6.The continous charging/filling quantity up to 99999g, and the charging rate is 60g~260g.
7.There's a automatic prompts function when the refrigerant in the cylinder is lack.
8. The vacuum time and inspection leak time can be adjusted according to your requirements.
9. Adopt Wonfulay(our own brand) filling gun in the filling interface which improve the charging/filling speed.
10.With Wonfulay(our own brand) high vacuum pump makes it with quick vacuum, the vacuum has reached to 5~10pa.
11. This mahcine has vacuum, inspection leak, charging/filling, recovery refrigerant function.
12. Repeat filling accuracy is ≤ ± 0.5%.
13. Easy to move
Specification
| Model | Charging
speed | Resolution | Precision | Vacuum degree | Gun
connector | Vacuum
pump | Power
supply |
| CM8600 | 60~80g/s | 0.1g | ±0.5% | 5Pa~10Pa | 1/4&3/8 | 4L/S | 380V/50Hz |
| CM8600A | 80~120g/s | 1g | ±0.5% | 5Pa~10Pa | 1/4&3/8 | 8L/S | 380V/50Hz |
| CM8600B | 120~160g/s | 1g | ±0.5% | 5Pa~10Pa | 1/4&3/8 | 8L/S | 380V/50Hz |
| CM8600C | 160~200g/s | 1g | ±0.5% | 5Pa~10Pa | 1/4&3/8 | 8L/S | 380V/50Hz |
| CM8600D | 200~260g/s | 1g | ±0.5% | 5Pa~10Pa | 1/4&3/8 | 8L/S | 380V/50Hz |
